| Feature | Details |
| Range (Module) | From $0.5$ to $16$ Module |
| Maximum Diameter | Up to $300\text{mm}$ (for Disc or Counter Bore type) |
| Tooth Profiles | Tip Relief, Protuberance, and Semi-topping |
| Minimum Shank Diameter | $8\text{mm}$ |
| Applicable Gear Type | Internal & External |
| Accuracy Class | ‘AA’ & ‘A’ (as per DIN1829) |
| Standard Materials | M35, ASP2030, ASP2052, $390$ |
| Coatings | TIN, Alcrona Pro |
GEAR SHAPER CUTTERS
GEAR SHAPER CUTTEcR
ESGI produces Spur and Helical shaper cutters for internal and external gears.
The cutters are designed for special requirements such as Pre-shaving, Semi-topping, and Protuberance.
The company uses CNC machines to grind the cutter profiles to achieve a certified accuracy class up to AA.

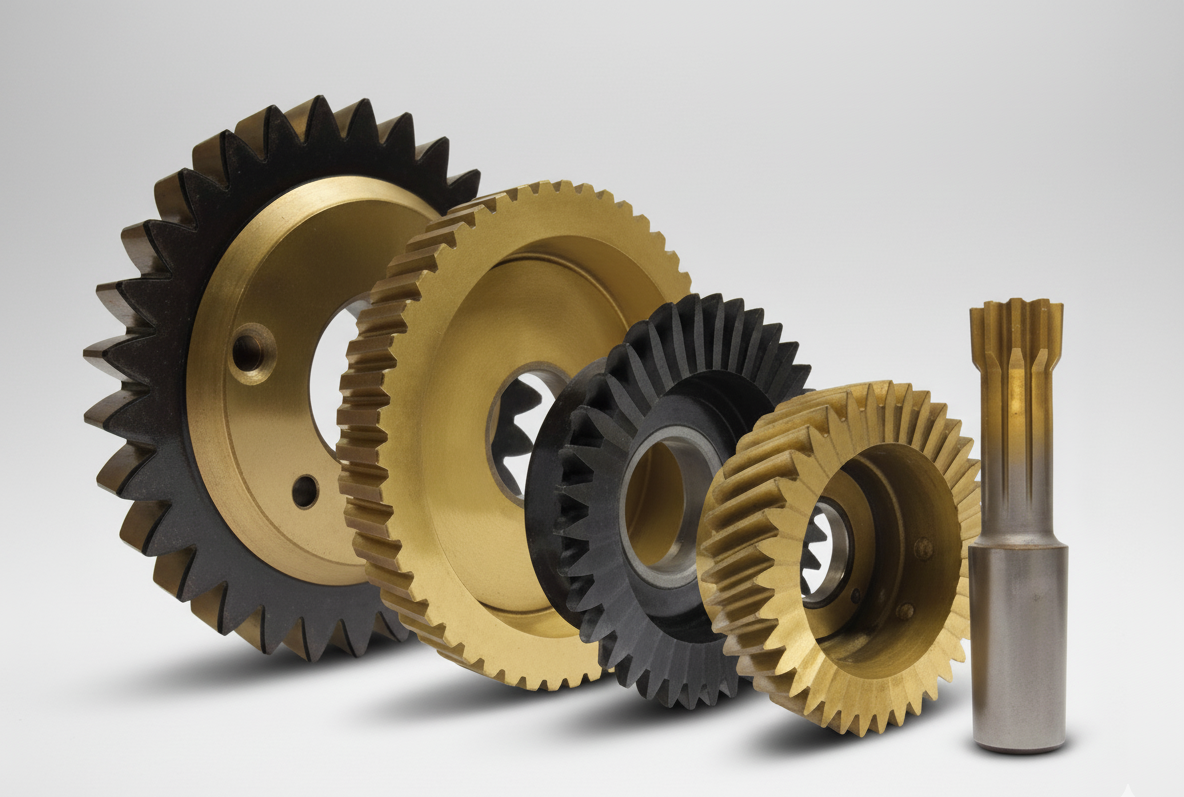

The types of cutters mentioned are Disc Type, Deep Counter Bore, Hub Type, and Shank Type.
